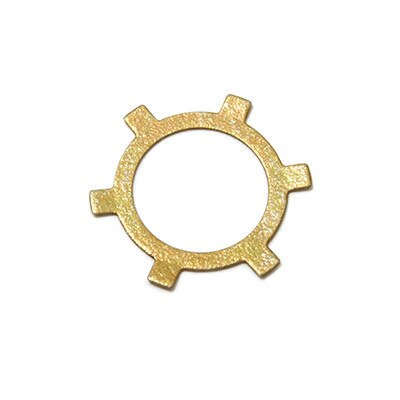

TI-43ST ZD

The TI-43ST ZD is a self-locking internal push-on ring for a 0.438 inch housing diameter and is 0.01 inches thick. It is made from Carbon Steel, Zinc Dichromate Yellow finish supplied by Rotor Clip. Made in USA

Details

Part# TI-43ST ZD

Carbon Steel, Zinc Dichromate Yellow
Manufactured by Rotor Clip
Made in USA

7/16 In. Housing Diameter, Self Locking Internal Push-On Ring
6 Prongs/ Teeth
0.237 In. Ring Inside Diameter
0.01 In. Thick

⚠WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds) which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Quantity discounts available

Quantity	Price
100 - 499	$0.1330
500 - 999	$0.1060
1000 - 4999	$0.0970
5000 - 9999	$0.0890
10000 +	$0.0820

1000 In Stock

(*) Minimun Quantity: 100

More information

Self-locking internal retaining rings can be installed in a housing/bore that has not had a groove machined into it. Self-locking rings with no lug holes are impossible to remove without either destroying the ring or warping it out of specified tolerances. This ring features a series of prongs protruding outward. The ends create interference with the housing when the ring is installed and a load is introduced to the other side.
