Part# DKR-13ST OIL
Carbon Steel, Plain, Lightly Oiled

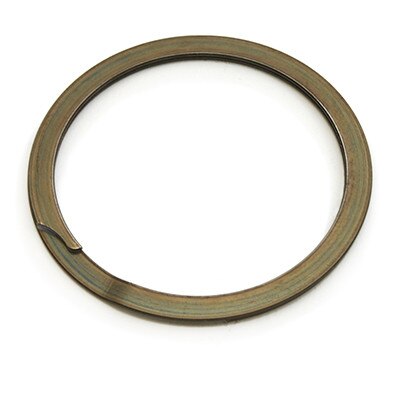

2-Turn internal Spiral Ring
For DIN472 Groove Specifications
Manufactured by Rotor Clip TRUWAVE
13 mm Housing Diameter
13.72 mm Free Outside Diameter
1.4 mm Section Width
0.99 mm Thick
13.6 mm Groove Diameter
1.1 mm Groove Width
0.3 mm Groove Depth
Carbon Steel, Plain, Lightly Oiled
2-Turn internal Spiral Ring
For DIN472 Groove Specifications
Manufactured by Rotor Clip TRUWAVE
13 mm Housing Diameter
13.72 mm Free Outside Diameter
1.4 mm Section Width
0.99 mm Thick
13.6 mm Groove Diameter
1.1 mm Groove Width
0.3 mm Groove Depth
These 2-turn rings are ideal for applications with high thrust loads and are designed to fit into a groove established by DIN472 specifications
