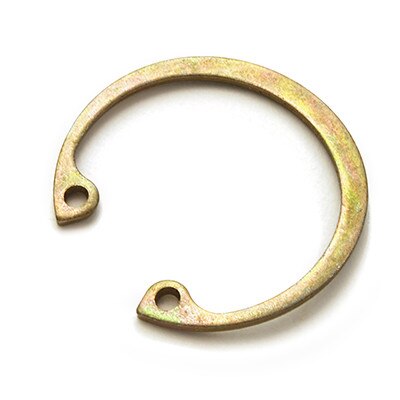

BHO-143ST ZD

The BHO-143ST ZD Internal retaining ring is crafted from Carbon Steel with Zinc Dichromate Yellow finish. It has a 1-7/16 inch diameter application and a 0.05 inch thickness with a distinct bowed design. Made in USA

Details

Part# BHO-143ST ZD

Carbon Steel, Zinc Dichromate Yellow
Manufactured by Rotor Clip
Made in USA

1.438 In. Housing Diameter, Bowed Internal Ring
1.596 In. Free Outside Diameter
0.05 In. Thick
0.078 In. Hole Diameter

1.528 In. Groove Diameter
0.07 In. Groove Width
0.045 In. Groove Depth

⚠WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds) which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Quantity discounts available

Quantity	Price
50 - 99	$1.6280
100 - 499	$0.8140
500 - 999	$0.6520
1000 - 4999	$0.5920
5000 - 9999	$0.5430
10000 +	$0.5010

3000 In Stock

(*) Minimun Quantity: 50

More information

Bowed retaining rings are curved versions of standard flat internal and external retaining rings and exert a pre-load on an assembly when installed in the groove. This takes up the end-play and acts like a spring, which keeps the assembly in compression.
