2B1250750G2ZN

2B1250750G2ZN, 1/8 X 3/4 inch, Low Carbon Steel Barb-Lok Pin, finished with Zinc Plating, manufactured by Driv-Lok. Made in USA

Grooved Pin Specifications

Details

Part# 2B1250750G2ZN

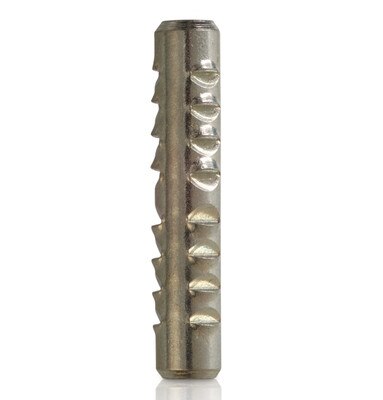

1/8 X 3/4 Barb-Lok Pin
Low Carbon Steel, Zinc Plated
Manufactured by Driv-Lok

0.125 In. Nominal Diameter
0.75 In. Length
0.133 - 0.145 Expanded Diameter

? RoHS Compliant ? REACH Compliant

Made in USA

Quantity discounts available

Quantity	Price
25 - 99	$1.5500
100 - 499	$0.7750
500 - 999	$0.6200
1000 - 4999	$0.5640
5000 - 9999	$0.5170
10000 +	$0.4770

5580 In Stock

(*) Minimun Quantity: 25

More information

The barbs are located at 120° intervals on the diameter of the pin. The number of barbs along the length of the pin, and the distance between the barbs are determined by pin diameter and customer requirements. The crests of the barbs constitute the expanded diameter. The expanded diameter of the barbed pin is measured on the second barb from the end of the pin and is measured with a ring gage. BARB-LOK Pins and Studs are made from low carbon steel or aluminum. Low carbon BARB-LOK Pins and Studs are zinc plated for corrosion resistance.
