XD143

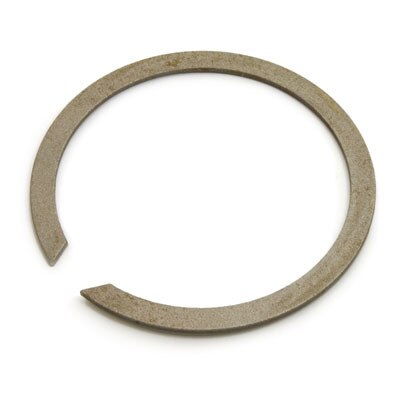

Light duty constant section external ring XD143 is designed for use on 1.437 inch shaft needle bearing applications. This ring is made from Carbon Steel with Plain & Oil finish.

XD Series Catalog Pages

Details

External Ring# XD143
Light Duty for Needle Bearings
Carbon Steel SAE 1060/1075, Plain

1.437 In. Shaft Diameter
36.5 mm Shaft Diameter
1.349 In. Inside Diameter
0.042 In. Wire Thickness
0.125 In. Section Width

Recommended Groove Size
1.369 In. Diameter
0.034 In. Depth
0.046 In. Width

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
500 - 999	$0.4780
1000 - 2499	$0.3180
2500 - 4999	$0.2070
5000 - 9999	$0.1550
10000 - 24999	$0.1320
25000 +	$0.1250

0 In Stock

(*) Minimun Quantity: 500

More information

This is known as an Eaton Style external constant section retaining ring for needle bearings. A retaining ring is a fastener that holds components or assemblies onto a shaft or in a housing/bore when installed in a groove. Once installed, the exposed portion acts as a shoulder which retains the specific component or assembly.
