  • WSM-243, 2-7/16 In. External Hvy Duty Spiral Ring

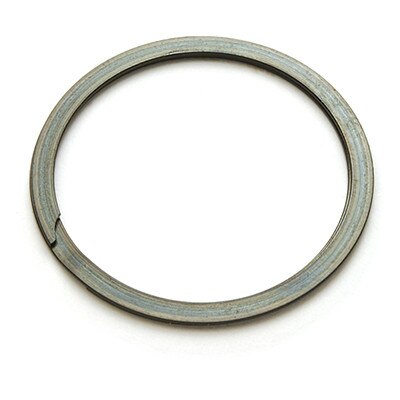

The WSM-243 is a 2-7/16 inch External Heavy Duty Spiral Ring in Carbon Steel with 0.078 thickness. This ring is also known as Spirolox RSN-243

Details

Details

Part# WSM-243

Carbon Steel, Plain, Lightly Oiled
Heavy Duty External Spiral Ring
Manufactured by Smalley

2.437 In. Shaft Diameter
2.283 In. Free Inside Diameter
0.2 In. Section Width
0.078 In. Thick

2.299 In. Groove Diameter
0.086 In. Groove Width
0.069 In. Groove Depth

✅ RoHS Compliant ✅ REACH Compliant
QuantityPrice
1 - 9$8.1260
10 - 49$5.5870
50 - 99$4.4700
100 - 499$4.1260
500 +$3.9440

5914 In Stock

(*) Minimun Quantity: 1

More information

Heavy duty external spiral retaining ring carbon steel, plain. Spiral retaining rings are axially installed into housings/bores (internal) or onto shafts (external), making 360° contact with the groove. Spiral retaining rings have no ears or lugs to interfere with the assembly. These rings are manufactured by coiling flat wire into the shape of the finished retaining ring. Spiral rings are provided with a removal notch to simplify the removal process. No special tools are required for installation or removal. Spiral retaining rings can be economically produced in special alloys like stainless steel because the manufacturing process eliminates scrap.
