  • WS-87, 7/8 In. External Med Duty Spiral Ring

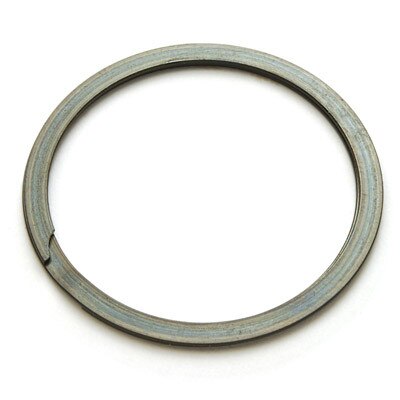

The WS-87 is a 7/8 inch External Medium Duty Spiral Ring in Carbon Steel with 0.031 thickness. This ring is also known as Spirolox RS-87

Details

Details

Part# WS-87

Carbon Steel, Plain, Lightly Oiled
Medium Duty External Spiral Ring
Manufactured by Smalley

0.875 In. Shaft Diameter
0.828 In. Free Inside Diameter
0.065 In. Section Width
0.031 In. Thick

0.838 In. Groove Diameter
0.036 In. Groove Width
0.019 In. Groove Depth

✅ RoHS Compliant ✅ REACH Compliant
QuantityPrice
10 - 49$0.7940
50 - 99$0.6350
100 - 499$0.5870
500 +$0.5610

5219 In Stock

(*) Minimun Quantity: 10

More information

Medium duty external spiral retaining ring carbon steel, plain. Spiral retaining rings are axially installed into housings/bores (internal) or onto shafts (external), making 360° contact with the groove. Spiral retaining rings have no ears or lugs to interfere with the assembly. These rings are manufactured by coiling flat wire into the shape of the finished retaining ring. Spiral rings are provided with a removal notch to simplify the removal process. No special tools are required for installation or removal. Spiral retaining rings can be economically produced in special alloys like stainless steel because the manufacturing process eliminates scrap.
