  • WHT-450, 4-1/2 In. Internal Medium Hvy Duty Spiral Ring

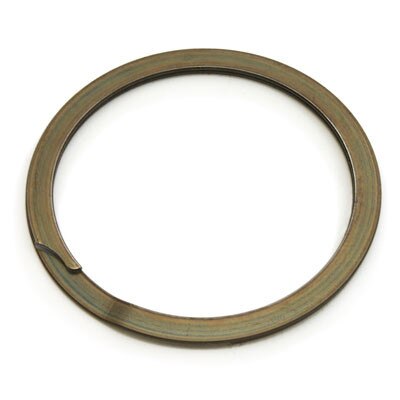

The WHT-450 is a 4-1/2 inch Internal Medium Heavy Duty Spiral Ring in Carbon Steel with 0.111 thickness. This ring is also known as Spirolox RRT-450

Details

Details

Part# WHT-450

Carbon Steel, Plain, Lightly Oiled
Medium Heavy Duty Internal Spiral Ring
Manufactured by Smalley

4.5 In. Housing Diameter
4.768 In. Free Outside Diameter
0.312 In. Section Width
0.111 In. Thick

4.735 In. Groove Diameter
0.12 In. Groove Width
0.118 In. Groove Depth

✅ RoHS Compliant ✅ REACH Compliant
QuantityPrice
1 - 9$16.8740
10 - 49$11.6010
50 - 99$9.2810
100 - 499$8.5670
500 +$8.1890

2963 In Stock

(*) Minimun Quantity: 1

More information

Medium heavy duty internal spiral retaining ring carbon steel, plain. Spiral retaining rings are axially installed into housings/bores (internal) or onto shafts (external), making 360° contact with the groove. Spiral retaining rings have no ears or lugs to interfere with the assembly. These rings are manufactured by coiling flat wire into the shape of the finished retaining ring. Spiral rings are provided with a removal notch to simplify the removal process. No special tools are required for installation or removal. Spiral retaining rings can be economically produced in special alloys like stainless steel because the manufacturing process eliminates scrap.
