  • WHM-900, 9.00 In. Internal Hvy Duty Spiral Ring

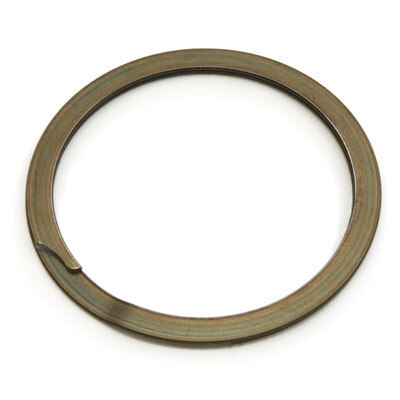

The WHM-900 is a 9 inch Internal Heavy Duty Spiral Ring in Carbon Steel with 0.187 thickness. This ring is also known as Spirolox RRN-900

Details

Details

Part# WHM-900

Carbon Steel, Plain, Lightly Oiled
Heavy Duty Internal Spiral Ring
Manufactured by Smalley

9 In. Housing Diameter
9.471 In. Free Outside Diameter
0.437 In. Section Width
0.187 In. Thick

9.405 In. Groove Diameter
0.209 In. Groove Width
0.203 In. Groove Depth

✅ RoHS Compliant ✅ REACH Compliant
QuantityPrice
1 - 9$142.1870
10 - 49$97.7540
50 - 99$78.2030
100 - 499$72.1880
500 +$69.0030

2 In Stock

(*) Minimun Quantity: 1

More information

Heavy duty internal spiral retaining ring carbon steel, plain. Spiral retaining rings are axially installed into housings/bores (internal) or onto shafts (external), making 360° contact with the groove. Spiral retaining rings have no ears or lugs to interfere with the assembly. These rings are manufactured by coiling flat wire into the shape of the finished retaining ring. Spiral rings are provided with a removal notch to simplify the removal process. No special tools are required for installation or removal. Spiral retaining rings can be economically produced in special alloys like stainless steel because the manufacturing process eliminates scrap.
