  • WH-343, 3-7/16 In. Internal Med Duty Spiral Ring

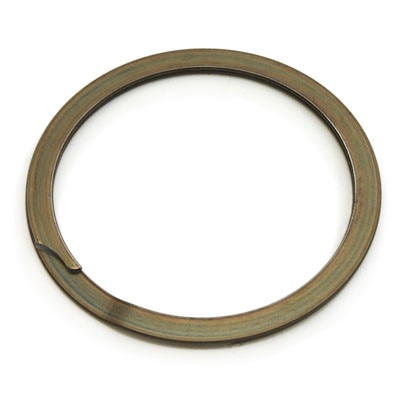

The WH-343 is a 3-7/16 inch Internal Medium Duty Spiral Ring in Carbon Steel with 0.061 thickness. This ring is also known as Spirolox RR-343

Details

Details

Part# WH-343

Carbon Steel, Plain, Lightly Oiled
Medium Duty Internal Spiral Ring
Manufactured by Smalley

3.437 In. Housing Diameter
3.574 In. Free Outside Diameter
0.188 In. Section Width
0.061 In. Thick

3.543 In. Groove Diameter
0.068 In. Groove Width
0.053 In. Groove Depth

✅ RoHS Compliant ✅ REACH Compliant
QuantityPrice
1 - 9$5.0000
10 - 49$3.4380
50 - 99$2.7500
100 - 499$2.5390
500 +$2.4270

87 In Stock

(*) Minimun Quantity: 1

More information

Medium duty internal spiral retaining ring carbon steel, plain. Spiral retaining rings are axially installed into housings/bores (internal) or onto shafts (external), making 360° contact with the groove. Spiral retaining rings have no ears or lugs to interfere with the assembly. These rings are manufactured by coiling flat wire into the shape of the finished retaining ring. Spiral rings are provided with a removal notch to simplify the removal process. No special tools are required for installation or removal. Spiral retaining rings can be economically produced in special alloys like stainless steel because the manufacturing process eliminates scrap.
