Part# VHO-137ST ZD
Carbon Steel, Zinc Dichromate Yellow
Manufactured by Rotor Clip
1.378 In. Housing Diameter, Beveled Internal Ring
1.526 In. Free Outside Diameter
0.05 In. Thick
0.078 In. Hole Diameter
1.478 In. Groove Diameter
0.041 In. Groove Width
0.05 In. Groove Depth
⚠WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds) which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Carbon Steel, Zinc Dichromate Yellow
Manufactured by Rotor Clip
1.378 In. Housing Diameter, Beveled Internal Ring
1.526 In. Free Outside Diameter
0.05 In. Thick
0.078 In. Hole Diameter
1.478 In. Groove Diameter
0.041 In. Groove Width
0.05 In. Groove Depth
⚠WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds) which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

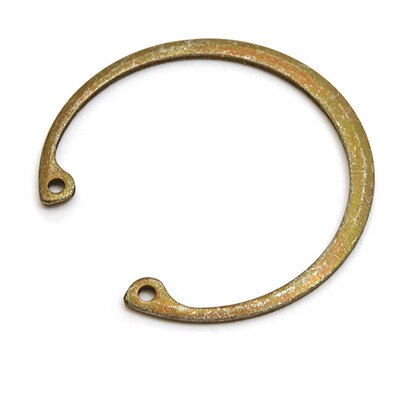

Internal beveled rings look exactly like the basic internal rings, only they have a 15* angle on the outer edge. This combines with a complementary groove angle to eliminate end play by wedging itself between the groove and the retained part.
