TX-25ST ZD

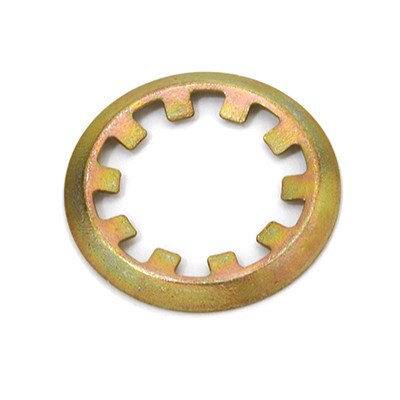

The TX-25ST ZD is a self-locking external push-on ring for a 1/4 inch shaft diameter and is 0.015 inches thick. It is made from Carbon Steel, Zinc Dichromate Yellow finish supplied by Rotor Clip. The TX series has a curved outer rim for greater thrust load. Made in USA

Details

Part# TX-25ST ZD

Carbon Steel, Zinc Dichromate Yellow
Manufactured by Rotor Clip
Made in USA

1/4 In. Shaft Diameter, External Push-On Ring
0.522 In. Free Outside Diameter
0.015 In. Thick

6 Prongs/Teeth

⚠WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds) which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Quantity discounts available

Quantity	Price
100 - 499	$0.1170
500 - 999	$0.0940
1000 - 4999	$0.0850
5000 - 9999	$0.0780
10000 +	$0.0720

2238 In Stock

(*) Minimun Quantity: 100

More information

Self-locking external retaining rings can be installed on a shaft that has not had a groove machined into it. Self-locking rings with no lug holes are impossible to remove without either destroying the ring or warping it out of specified tolerances. These rings feature an outer rim with a series of prongs protruding into the center. The ends create interference with the shaft when the rings is installed and a load is introduced to the other side. The outer rim of the TX series is curved which affords greater thrust load capacity and is easier to orient for assembly than the TY Series.
