TTP0900450PL

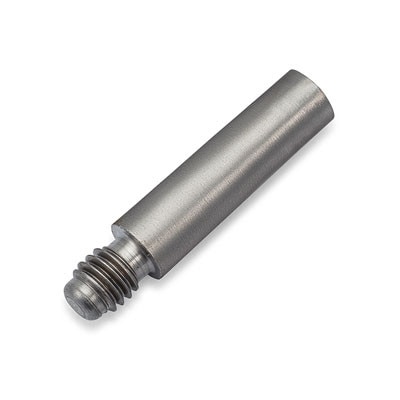

#9 X 4 1/2 In. Threaded Taper Pin, Carbon Steel, Plain

Details

Part# TTP0900450PL

Carbon Steel, Plain
Supplied by Stanlok
Nut is not included

#9 X 4 1/2 In. Taper Pin Size
0.495 In. Small End Diameter
0.5889 In. Large End Diameter
5.25 In. Total Length with 4.5 In. Useable Length
1/2-20 Thread Size

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
1 - 9	$20.9100
10 - 49	$14.3750
50 - 99	$11.5000
100 - 499	$10.6160
500 +	$10.1480

36 In Stock

(*) Minimun Quantity: 1

More information

Threaded taper pins are used whenever a taper pin has to be removed from the driven side. Threaded taper pins are 0.002" smaller on the large end diameter to allow the pin to be inserted approximately 3/32" deper int the taper-reamed hole. The lare end of the pin is recessed below the surface which allows the nut to bear on the surface when tightened to pull the pin out.
