TTP0400125SS

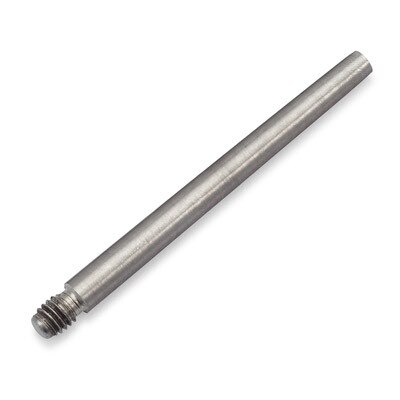

#4 X 1 1/4 In. Threaded Taper Pin, 18-8 Stainless Steel, Plain

Details

Part# TTP0400125SS

18-8 Stainless Steel, Plain
Supplied by Stanlok
Nut is not included

#4 X 1 1/4 In. Taper Pin Size
0.222 In. Small End Diameter
0.248 In. Large End Diameter
1.656 In. Total Length with 1.25 In. Useable Length
1/4-28 Thread Size

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
1 - 9	$8.5700
10 - 49	$5.8920
50 - 99	$4.7130
100 - 499	$4.3510
500 +	$4.1590

85 In Stock

(*) Minimun Quantity: 1

More information

Threaded taper pins are used whenever a taper pin has to be removed from the driven side. Threaded taper pins are 0.002" smaller on the large end diameter to allow the pin to be inserted approximately 3/32" deper int the taper-reamed hole. The lare end of the pin is recessed below the surface which allows the nut to bear on the surface when tightened to pull the pin out.
