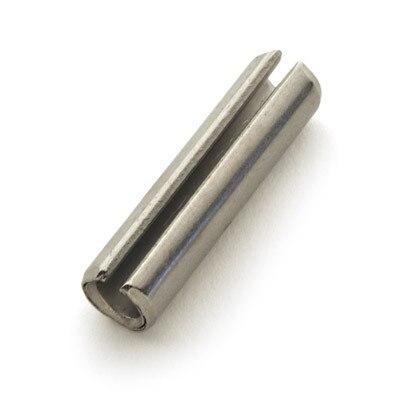

SLTPM5X30DK

SLTPM5X30DK is a slotted spring pin designed for 5 mm diameter and 30 mm length application, precision-crafted from 302 Stainless Steel with Plain finish. This high quality fastener is designed to secure components efficiently while allowing for easy disassembly.

Details

Part# SLTPM5X30DK
302 Stainless Steel, Slotted Spring Pin, ISO8752, Plain

5 mm X 30 mm Callout Size
5.4 mm Pin Diameter
30 mm Useable Length
1 mm Wall Thickness
5 - 5.12 mm Compatible Hole Diameter

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
50 - 99	$1.1210
100 - 499	$0.5610
500 - 999	$0.4490
1000 - 4999	$0.4080
5000 - 9999	$0.3740
10000 +	$0.3450

849 In Stock

(*) Minimun Quantity: 50

More information

M5 X 30mm Slotted Spring Pin, ISO8752, 302 Stainless Steel, Plain. A spring pin (also called tension pin or roll pin) is a mechanical fastener that secures the position of two or more parts of a machine relative to each other. Spring pins have a body diameter which is larger than the hole diameter, and a chamfer on either one or both ends to facilitate starting the pin into the hole. The spring action of the pin allows it to compress as it assumes the diameter of the hole. The radial force exerted by the pin against the hole wall retains it in the hole, therefore a spring pin is considered a self retaining fastener.
