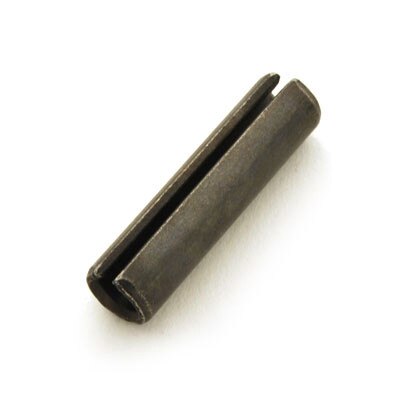

SLTPM2X18BK

SLTPM2X18BK is a slotted spring pin designed for 2 mm diameter and 18 mm length application, precision-crafted from Carbon Steel with Plain finish. This high quality fastener is designed to secure components efficiently while allowing for easy disassembly.

Details

Part# SLTPM2X18BK
Carbon Steel, Slotted Spring Pin, ISO8752, Plain

2 mm X 18 mm Callout Size
2.3 mm Pin Diameter
18 mm Useable Length
0.4 mm Wall Thickness
2 - 2.1 mm Compatible Hole Diameter

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
100 - 499	$0.0930
500 - 999	$0.0750
1000 - 4999	$0.0680
5000 - 9999	$0.0620
10000 +	$0.0580

295 In Stock

(*) Minimun Quantity: 100

More information

M2 X 18mm Slotted Spring Pin, ISO8752, Carbon Steel, Plain. A spring pin (also called tension pin or roll pin) is a mechanical fastener that secures the position of two or more parts of a machine relative to each other. Spring pins have a body diameter which is larger than the hole diameter, and a chamfer on either one or both ends to facilitate starting the pin into the hole. The spring action of the pin allows it to compress as it assumes the diameter of the hole. The radial force exerted by the pin against the hole wall retains it in the hole, therefore a spring pin is considered a self retaining fastener.
