SLTP2193000BT

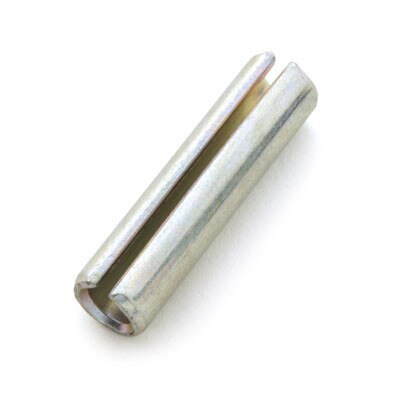

SLTP2193000BT is a slotted spring pin designed for 0.219 inch diameter and 3 inch length application, precision-crafted from Carbon Steel with Zinc Plated finish. This high quality fastener is designed to secure components efficiently while allowing for easy disassembly.

Details

Part# SLTP2193000BT

Slotted Spring Pin, Carbon Steel, Zinc Plated

7/32 X 3 Callout Size
0.229 Pin Diameter with 0.003 Diameter Tolerance
3 Length with 0.025 Length Tolerance
0.048 Wall Thickness
0.219 - 0.224 Compatible Hole Diameter

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
25 - 99	$2.7560
100 - 499	$1.3780
500 - 999	$1.1030
1000 - 4999	$1.0030
5000 - 9999	$0.9190
10000 +	$0.8480

1603 In Stock

(*) Minimun Quantity: 25

More information

Spring pin, slotted, 0.219 In. Diameter X 3.00 In. Length, carbon steel, zinc plated. A spring pin (also called tension pin or roll pin) is a mechanical fastener that secures the position of two or more parts of a machine relative to each other. Spring pins have a body diameter which is larger than the hole diameter, and a chamfer on either one or both ends to facilitate starting the pin into the hole. The spring action of the pin allows it to compress as it assumes the diameter of the hole. The radial force exerted by the pin against the hole wall retains it in the hole, therefore a spring pin is considered a self retaining fastener.
