SHR-175ST PA

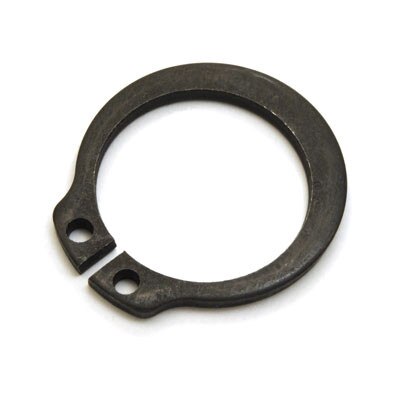

The SHR-175ST PA is a heavy duty external ring for a 1-3/4 inch shaft diameter and is 0.109 inches thick. It is made from Carbon Steel, Phosphate finish supplied by Rotor Clip. Made in USA

Details

Part# SHR-175ST PA

Carbon Steel, Black Phosphate
Manufactured by Rotor Clip
Made in USA

1.75 In. Shaft Diameter, Heavy Duty External Ring
1.608 In. Free Inside Diameter
0.109 In. Thick
0.109 In. Hole Diameter

1.65 In. Groove Diameter
0.12 In. Groove Width
0.05 In. Groove Depth

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
5 - 9	$3.1910
10 - 49	$2.1940
50 - 99	$1.7550
100 - 499	$1.6200
500 +	$1.5490

9436 In Stock

(*) Minimun Quantity: 5

More information

The SHR is an extra thick version of a regular SH retaining ring. As such, it is stronger and can withstand greater thrust loads than its standard counterpart.
