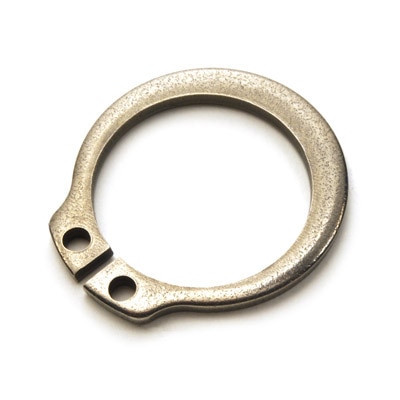

SHR-156SS

The SHR-156SS is a heavy duty external ring for a 1-9/16 inch shaft diameter and is 0.109 inches thick. It is made from Stainless Steel PH15-7Mo, Passivated finish supplied by Rotor Clip. Made in USA

Details

Part# SHR-156SS

Stainless Steel, Passivated
Manufactured by Rotor Clip
Made in USA

1.562 In. Shaft Diameter, Heavy Duty External Ring
1.437 In. Free Inside Diameter
0.109 In. Thick
0.109 In. Hole Diameter

1.468 In. Groove Diameter
0.12 In. Groove Width
0.047 In. Groove Depth

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
1 - 9	$43.5900
10 - 49	$29.9680
50 - 99	$23.9750
100 - 499	$22.1310
500 +	$21.1540

165 In Stock

(*) Minimun Quantity: 1

More information

The SHR is an extra thick version of a regular SH retaining ring. As such, it is stronger and can withstand greater thrust loads than its standard counterpart.
