SHI-56SS

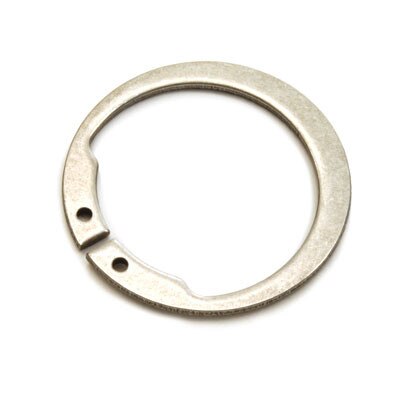

Inverted external ring SHI-56SS is designed for a 9/16 inch shaft diameter and is 0.035 inches thick. It is made from Stainless Steel PH15-7Mo, Passivated finish supplied by Rotor Clip. Made in USA

Details

Part# SHI-56SS

Stainless Steel, Passivated
Manufactured by Rotor Clip
Made in USA

0.562 In. Shaft Diameter, Inverted External Ring
0.521 In. Free Inside Diameter
0.035 In. Thick
0.042 In. Hole Diameter

0.53 In. Groove Diameter
0.039 In. Groove Width
0.016 In. Groove Depth

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
500 - 999	$2.9460
1000 - 4999	$2.6780
5000 - 9999	$2.4550
10000 +	$2.2660

0 In Stock

(*) Minimun Quantity: 500

More information

Inverted retaining rings are a variation of axially assembled rings in which the lug holes are inverted to fit in the bottom of the groove. Inverting the lugs allows greater clearance on a shaft or in a housing and forms a higher uniform shoulder good for retaining bearings and other components with large corner radii or chamfers.
