SHI-250ST ZD

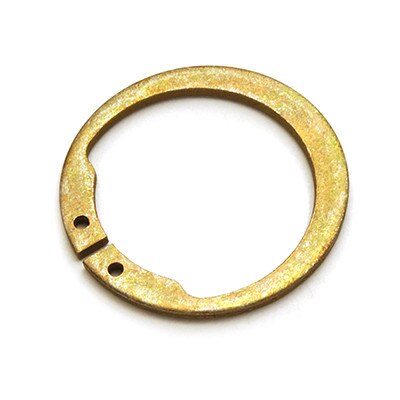

Inverted external ring SHI-250ST ZD is designed for a 2-1/2 inch shaft diameter and is 0.078 inches thick. It is made from Carbon Steel, Zinc Dichromate Yellow finish supplied by Rotor Clip. Made in USA

Details

Part# SHI-250ST ZD

Carbon Steel, Zinc Dichromate Yellow
Manufactured by Rotor Clip
Made in USA

2.5 In. Shaft Diameter, Inverted External Ring
2.313 In. Free Inside Diameter
0.078 In. Thick
0.12 In. Hole Diameter

2.36 In. Groove Diameter
0.086 In. Groove Width
0.07 In. Groove Depth

⚠WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds) which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Quantity discounts available

Quantity	Price
63 - 99	$1.8680
100 - 499	$1.7250
500 +	$1.6490

0 In Stock

(*) Minimun Quantity: 63

More information

Inverted retaining rings are a variation of axially assembled rings in which the lug holes are inverted to fit in the bottom of the groove. Inverting the lugs allows greater clearance on a shaft or in a housing and forms a higher uniform shoulder good for retaining bearings and other components with large corner radii or chamfers.
