SHI-177ST PA

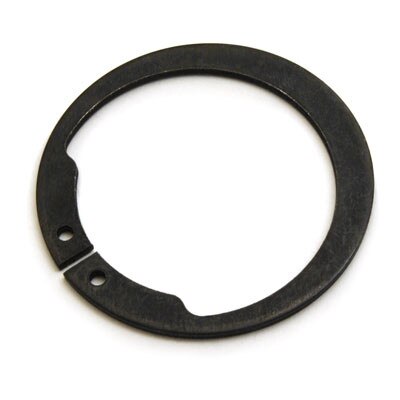

Inverted external ring SHI-177ST PA is designed for a 1-3/4 inch shaft diameter and is 0.062 inches thick. It is made from Carbon Steel, Phosphate finish supplied by Rotor Clip. Made in USA

Details

Part# SHI-177ST PA

Carbon Steel, Black Phosphate
Manufactured by Rotor Clip
Made in USA

1.75 In. Shaft Diameter, Inverted External Ring
1.637 In. Free Inside Diameter
0.062 In. Thick
0.078 In. Hole Diameter

1.65 In. Groove Diameter
0.068 In. Groove Width
0.05 In. Groove Depth

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
25 - 99	$1.7270
100 - 499	$0.8640
500 - 999	$0.6910
1000 - 4999	$0.6280
5000 - 9999	$0.5760
10000 +	$0.5320

1250 In Stock

(*) Minimun Quantity: 25

More information

Inverted retaining rings are a variation of axially assembled rings in which the lug holes are inverted to fit in the bottom of the groove. Inverting the lugs allows greater clearance on a shaft or in a housing and forms a higher uniform shoulder good for retaining bearings and other components with large corner radii or chamfers.
