SHF-43ST ZD

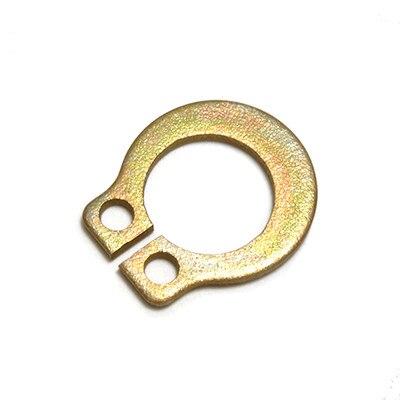

The SHF-43ST ZD is an external grip ring for a 7/16 inch shaft diameter and is 0.05 inches thick. It is made from Carbon Steel, Zinc Dichromate Yellow finish supplied by Rotor Clip. Made in USA

Details

Part# SHF-43ST ZD

Carbon Steel, Zinc Dichromate Yellow
Manufactured by Rotor Clip
Made in USA

0.437 In. Shaft Diameter, External Grip Ring
0.412 In. Free Inside Diameter
0.05 In. Thick
0.078 In. Hole Diameter

0.419 In. Groove Diameter
0.056 In. Groove Width
0.009 In. Groove Depth

?WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds) which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Quantity discounts available

Quantity	Price
50 - 99	$0.6840
100 - 499	$0.3420
500 - 999	$0.2740
1000 - 4999	$0.2490
5000 - 9999	$0.2280
10000 +	$0.2110

1171 In Stock

(*) Minimun Quantity: 50

More information

Grip rings do not require grooves, threads, or other preparatory machining. They exerts a frictional hold against axial displacement from either direction. They can be installed or seated at any point on a shaft and automatically compensate for accumulated tolerances in the retained parts.
