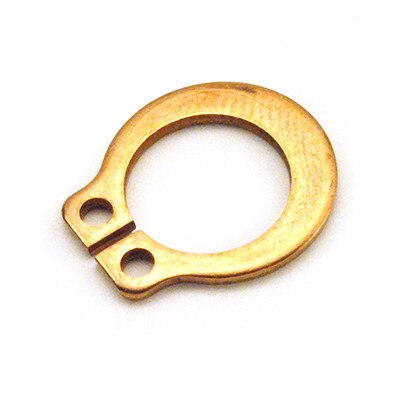

SHF-37BC

The SHF-37BC is an external grip ring for a 3/8 inch shaft diameter and is 0.042 inches thick. It is made from Beryllium Copper, Plain finish supplied by Rotor Clip. Made in USA

Details

Part# SHF-37BC

Beryllium Copper, Plain
Manufactured by Rotor Clip
Made in USA

In. Shaft Diameter, External Grip Ring
0.354 In. Free Inside Diameter
0.042 In. Thick
In. Hole Diameter

0.361 In. Groove Diameter
0.048 In. Groove Width
0.007 In. Groove Depth

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
10 - 99	$3.4160
100 - 499	$1.7080
500 - 999	$1.3670
1000 - 4999	$1.2420
5000 - 9999	$1.1390
10000 +	$1.0510

7403 In Stock

(*) Minimun Quantity: 10

More information

Grip rings do not require grooves, threads, or other preparatory machining. They exerts a frictional hold against axial displacement from either direction. They can be installed or seated at any point on a shaft and automatically compensate for accumulated tolerances in the retained parts.
