SHF-25ST PA

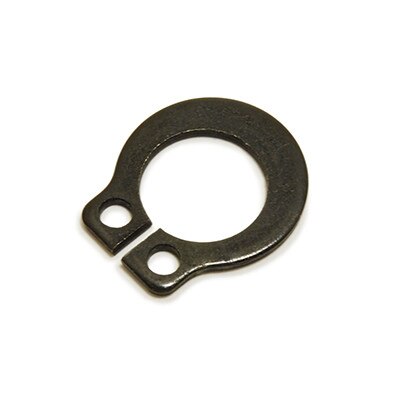

The SHF-25ST PA is an external grip ring for a 1/4 inch shaft diameter and is 0.035 inches thick. It is made from Carbon Steel, Phosphate finish supplied by Rotor Clip. Made in USA

Details

Part# SHF-25ST PA

Carbon Steel, Black Phosphate
Manufactured by Rotor Clip
Made in USA

0.250 In. Shaft Diameter, External Grip Ring
0.238 In. Free Inside Diameter
0.035 In. Thick
0.051 In. Hole Diameter

0.24 In. Groove Diameter
0.041 In. Groove Width
0.005 In. Groove Depth

? RoHS Compliant ? REACH Compliant

Quantity discounts available

Quantity	Price
100 - 499	$0.1720
500 - 999	$0.1380
1000 - 4999	$0.1250
5000 - 9999	$0.1150
10000 +	$0.1060

0 In Stock

(*) Minimun Quantity: 100

More information

Grip rings do not require grooves, threads, or other preparatory machining. They exerts a frictional hold against axial displacement from either direction. They can be installed or seated at any point on a shaft and automatically compensate for accumulated tolerances in the retained parts.
