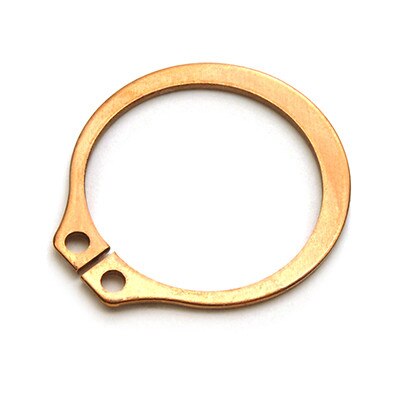

SH-87BC

The SH-87BC is the most common basic external retaining ring for a 7/8 inch shaft diameter and is 0.042 inches thick. It is made from Beryllium Copper, Plain finish supplied by Rotor Clip. Made in USA

Details

Part# SH-87BC

Beryllium Copper, Plain
Manufactured by Rotor Clip
Made in USA

0.875 In. Shaft Diameter, Basic External Ring
0.81 In. Free Inside Diameter
0.042 In. Thick
0.052 In. Hole Diameter

0.821 In. Groove Diameter
0.046 In. Groove Width
0.027 In. Groove Depth

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
5 - 99	$11.1850
100 - 499	$5.5930
500 - 999	$4.4740
1000 - 4999	$4.0680
5000 - 9999	$3.7290
10000 +	$3.4420

491 In Stock

(*) Minimun Quantity: 5

More information

Axially installed tapered section retaining rings, also known as circlips, have a tapered shape where the height of the ring decreases symmetrically from the top to the free ends. This allows the ring to grip the bottom of the groove and withstand significant thrust loading, meeting functional, safety and reliability requirements across applications in almost every industry. These rings are manufactured with lug holes that are used to install/remove them, using pliers designed for this purpose.
