SH-55ST MZD

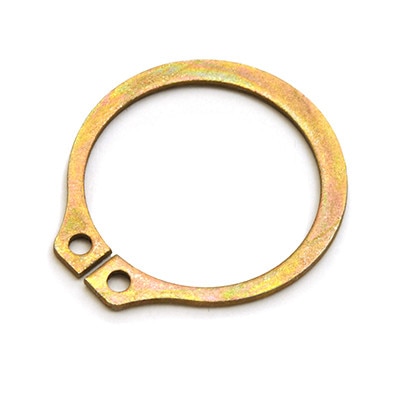

SH-55ST MZD, MS16624-2055, 0.551 Diameter Basic External Ring, 0.035 In. Thick Carbon Steel Zinc Dichromate Yellow Manufactured by Rotor Clip. Made in USA

Details

Part# SH-55ST MZD, MS16624-2055

Carbon Steel, Zinc Dichromate Yellow
Manufactured by Rotor Clip

0.551 In. Shaft Diameter, Basic External Ring
0.509 In. Free Inside Diameter
0.035 In. Thick
0.047 In. Hole Diameter

0.519 In. Groove Diameter
0.039 In. Groove Width
0.016 In. Groove Depth

Quantity discounts available

Quantity	Price
50 - 99	$0.6500
100 - 499	$0.3250
500 - 999	$0.2600
1000 - 4999	$0.2370
5000 - 9999	$0.2170
10000 +	$0.2000

1000 In Stock

(*) Minimun Quantity: 50

More information

Basic external retaining ring in carbon steel, zinc Dichromate. Tapered section retaining rings decrease symmetrically from the center to the free ends, remaining circular when contracted or expanded within the limits of normal use. This assures contact with the groove along the entire periphery of the ring. These rings may be installed axially (horizontally along the center point of an axis) or radially (externally along the radius of a circle). Axially assembled retaining rings are installed into machined grooves in housings/bores (internal) or on shafts (external). These rings are manufactured with lug holes—small holes in the lugs of both axial internal and external retaining rings—that are used to install/remove them, using pliers designed for this purpose.
