SH-34ST Z3X

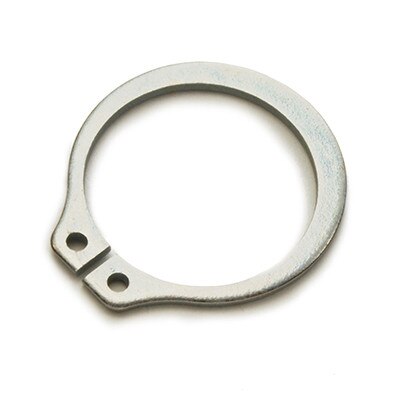

The SH-34ST Z3X is the most common basic external retaining ring for a 11/32 inch shaft diameter and is 0.025 inches thick. It is made from Carbon Steel, Zinc Clear Trivalent Chromate finish supplied by Rotor Clip. Made in USA

Details

Part# SH-34ST Z3X

Carbon Steel, Zinc Trivalent Clear
Manufactured by Rotor Clip
Made in USA

0.344 In. Shaft Diameter, Basic External Ring
0.309 In. Free Inside Diameter
0.025 In. Thick
0.041 In. Hole Diameter

0.321 In. Groove Diameter
0.029 In. Groove Width
0.011 In. Groove Depth

Quantity discounts available

Quantity	Price
1000 - 4999	$0.1270
5000 - 9999	$0.1170
10000 +	$0.1080

0 In Stock

(*) Minimun Quantity: 1000

More information

Axially installed tapered section retaining rings, also known as circlips, have a tapered shape where the height of the ring decreases symmetrically from the top to the free ends. This allows the ring to grip the bottom of the groove and withstand significant thrust loading, meeting functional, safety and reliability requirements across applications in almost every industry. These rings are manufactured with lug holes that are used to install/remove them, using pliers designed for this purpose.
