SH-250ST PA

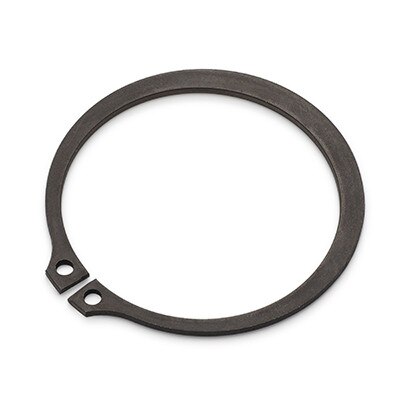

The SH-250ST PA is the most common basic external retaining ring for a 2-1/2 inch shaft diameter and is 0.078 inches thick. It is made from Carbon Steel, Phosphate finish supplied by Rotor Clip. Made in USA

Details

Part# SH-250ST PA

Carbon Steel, Black Phosphate
Manufactured by Rotor Clip
Made in USA

2.5 In. Shaft Diameter, Basic External Ring
2.313 In. Free Inside Diameter
0.078 In. Thick
0.125 In. Hole Diameter

2.36 In. Groove Diameter
0.086 In. Groove Width
0.07 In. Groove Depth

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
10 - 49	$1.1330
50 - 99	$0.9060
100 - 499	$0.8370
500 +	$0.8000

13768 In Stock

(*) Minimun Quantity: 10

More information

Axially installed tapered section retaining rings, also known as circlips, have a tapered shape where the height of the ring decreases symmetrically from the top to the free ends. This allows the ring to grip the bottom of the groove and withstand significant thrust loading, meeting functional, safety and reliability requirements across applications in almost every industry. These rings are manufactured with lug holes that are used to install/remove them, using pliers designed for this purpose.
