SH-125ST PA

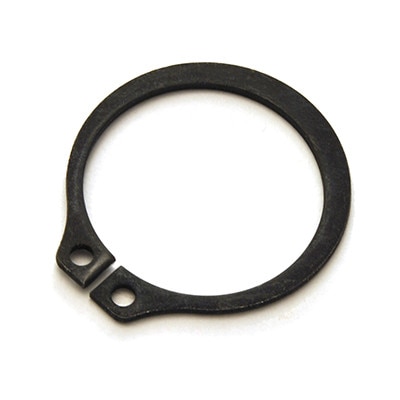

The SH-125ST PA is the most common basic external retaining ring for a 1-1/4 inch shaft diameter and is 0.05 inches thick. It is made from Carbon Steel, Phosphate finish supplied by Rotor Clip. Made in USA

Details

Part# SH-125ST PA

Carbon Steel,
Manufactured by Rotor Clip
Made in USA

1.25 In. Shaft Diameter, Basic External Ring
1.156 In. Free Inside Diameter
0.05 In. Thick
0.078 In. Hole Diameter

1.176 In. Groove Diameter
0.056 In. Groove Width
0.037 In. Groove Depth

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
50 - 99	$0.8350
100 - 499	$0.4180
500 - 999	$0.3340
1000 - 4999	$0.3040
5000 - 9999	$0.2790
10000 +	$0.2570

5565 In Stock

(*) Minimun Quantity: 50

More information

Axially installed tapered section retaining rings, also known as circlips, have a tapered shape where the height of the ring decreases symmetrically from the top to the free ends. This allows the ring to grip the bottom of the groove and withstand significant thrust loading, meeting functional, safety and reliability requirements across applications in almost every industry. These rings are manufactured with lug holes that are used to install/remove them, using pliers designed for this purpose.
