RGS0121000G2ZN

RGS0121000G2ZN, #12 x 1 inch, Low Carbon Steel Round Head Grooved Stud, finished with Zinc Plating, manufactured by Driv-Lok. Made in USA

Grooved Pin Specifications

Details

Part# RGS0121000G2ZN

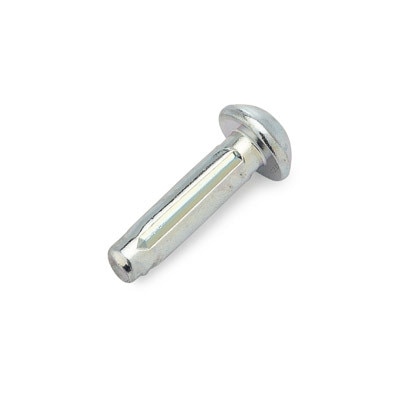

#12 x 1 Round Head Grooved Stud
Low Carbon Steel, Zinc Plated
Manufactured by Driv-Lok

0.196 In. Nominal Diameter
1 In. Length
0.206 Expanded Pin Diameter
0.382 - 0.408 Head Diameter

? RoHS Compliant ? REACH Compliant

Made in USA

Quantity discounts available

Quantity	Price
25 - 99	$2.8200
100 - 499	$1.4100
500 - 999	$1.1280
1000 - 4999	$1.0260
5000 - 9999	$0.9400
10000 +	$0.8680

8800 In Stock

(*) Minimun Quantity: 25

More information

Grooved studs are commonly used for a variety of applications including fastening brackets, control arms, knobs, handles, instruction panels, and nameplates. Grooved studs have three parallel grooves spaced at 120° intervals around the diameter of the shank. Standard grooved studs are manufactured from low carbon steel and are zinc plated for corrosion resistance. Grooved studs function in the same manner as grooved pins. They provide the same positive holding features as grooved pins plus additional end loading resistance provided by the head of the stud.
