  • RE-56ST PA, 9/16 in. Dia Reinforced E-Style Ring, .042 In. Thick Carbon Steel, Phosphate

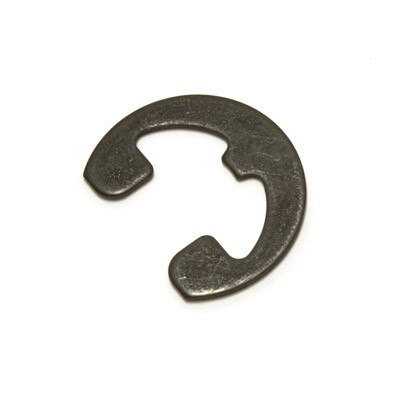

The RE-56ST PA is a reinforced E-Syle external snap ring designed for a 9/16 inch diameter application and a thickness of 0.042 inches, crafted from Carbon Steel with a Phosphate finish. This retaining ring is manufactured by Rotor Clip. Made in USA

Details

Details

Part# RE-56ST PA

Carbon Steel, Black Phosphate
Manufactured by Rotor Clip
Made in USA

0.562 In. Shaft Diameter, Reinforced E-Style External Ring
0.87 In. Free Outside Diameter
0.43 In. Free Inside Diameter
0.042 In. Thick

0.437 In. Groove Diameter
0.046 In. Groove Width
0.062 In. Groove Depth

✅ RoHS Compliant ✅ REACH Compliant
QuantityPrice
100 - 499$0.2200
500 - 999$0.1760
1000 - 4999$0.1600
5000 - 9999$0.1470
10000 +$0.1350

8413 In Stock

(*) Minimun Quantity: 100

More information

The reinforced E-Syle ring is designed for use in assemblies where conventional E-type fasteners do not provide the necessary holding power. It is particularly suitable for applications in which the ring is subject to strong push-out forces resulting from heavy vibration and shock loads, high rotational speeds or relative rotation bewtween the retained parts.
