RE-31SS

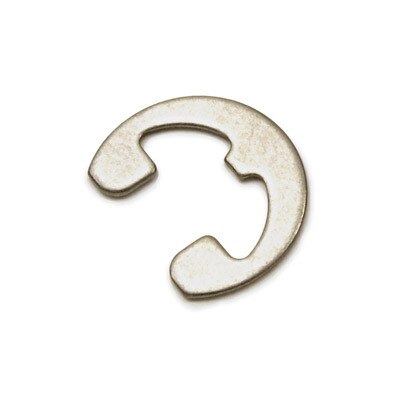

The RE-31SS is a reinforced E-Syle external snap ring designed for a 5/16 inch diameter application and a thickness of 0.025 inches, crafted from Stainless Steel PH15-7Mo with a Passivated finish. This retaining ring is manufactured by Rotor Clip. Made in USA

Details

Part# RE-31SS

Stainless Steel, Passivated
Manufactured by Rotor Clip
Made in USA

0.312 In. Shaft Diameter, Reinforced E-Style External Ring
0.588 In. Free Outside Diameter
0.242 In. Free Inside Diameter
0.025 In. Thick

0.25 In. Groove Diameter
0.029 In. Groove Width
0.031 In. Groove Depth

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
50 - 99	$0.7870
100 - 499	$0.3940
500 - 999	$0.3150
1000 - 4999	$0.2870
5000 - 9999	$0.2630
10000 +	$0.2430

22 In Stock

(*) Minimun Quantity: 50

More information

The reinforced E-Syle ring is designed for use in assemblies where conventional E-type fasteners do not provide the necessary holding power. It is particularly suitable for applications in which the ring is subject to strong push-out forces resulting from heavy vibration and shock loads, high rotational speeds or relative rotation bewtween the retained parts.
