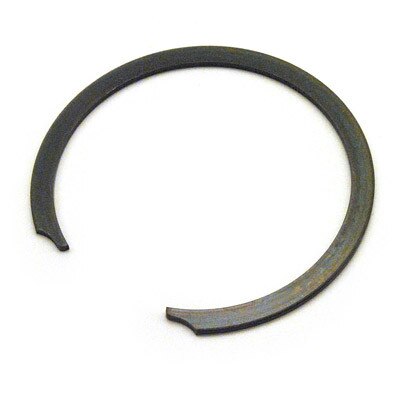

ND150

Internal Ring ND150 is designed for use on 1-1/2 inch Needle Bearing applications. This ring is made from Carbon Steel with Black, Lightly Oiled finish.

ND Series Catalog Pages

Details

Internal Ring# ND150
For Needle Bearings
Carbon Steel SAE 1060/1075, Black, Lightly Oiled

1.5 In. Housing Diameter
38.1 mm Housing Diameter
1.6 In. Outside Diameter
0.042 In. Wire Thickness
0.125 In. Section Width

Recommended Groove Size
1.58 In. Diameter
0.04 In. Depth
0.046 In. Width

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
500 - 999	$0.4780
1000 - 2499	$0.3180
2500 - 4999	$0.2070
5000 - 9999	$0.1550
10000 - 24999	$0.1320
25000 +	$0.1250

0 In Stock

(*) Minimun Quantity: 500

More information

This is an Eaton ND Series internal constant section retaining ring for needle bearings. An internal retaining ring is a fastener that holds components or assemblies in a housing/bore when installed into a groove. Once installed, the exposed portion acts as a shoulder which retains the specific component or assembly.
