  • NAN362, 3-5/8 in. NAN Series Internal Rings for Housing Applications

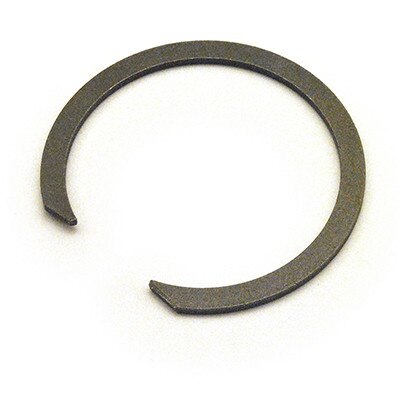

Constant Section Internal Ring NAN362 is designed for use on 3-5/8 inch bore applications. This ring is made from Carbon Steel SAE 1060/1075 with Black, Lightly Oiled finish.

Details

Details

Internal Ring# NAN362
Constant Section
Carbon Steel SAE 1060/1075, Black, Lightly Oiled

3.625 In. Housing Diameter
92.1 mm Housing Diameter
3.831 In. Outside Diameter
0.109 In. Wire Thickness
0.25 In. Section Width

Recommended Groove Size
3.773 In. Diameter
0.074 In. Depth
0.12 In. Width
QuantityPrice
5 - 99$11.9500
100 - 499$5.9750
500 - 999$4.7800
1000 - 4999$4.3460
5000 - 9999$3.9840
10000 +$3.6770

574 In Stock

(*) Minimun Quantity: 5

More information

This is an Eaton Style internal constant section retaining ring. An internal retaining ring is a fastener that holds components or assemblies in a housing/bore when installed into a groove. Once installed, the exposed portion acts as a shoulder which retains the specific component or assembly.
