LC-118ST PA

LC-118ST PA, 1.188 in. Shaft Diameter 2-Piece External Interlocking Ring, 0.05 In. Thick, Carbon Steel, Phosphate,, Sold in Increments of 25 Sets only Made in USA

Details

Part# LC-118ST PA
2-Piece External Locking Ring
** Sold in Increments of 25 Sets Only **

Carbon Spring Steel SAE 1060-1090,
Manufactured by Rotor Clip
Made in USA

1.188 In. Shaft Diameter, External Interlocking Ring
1.064 In. Free Inside Diameter
0.05 In. Thick

1.075 In. Groove Diameter
0.056 In. Groove Width
0.056 In. Groove Depth

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
10 - 99	$4.0810
100 - 499	$2.0410
500 - 999	$1.6330
1000 - 4999	$1.4840
5000 - 9999	$1.3610
10000 +	$1.2560

100 In Stock

(*) Minimun Quantity: 10

More information

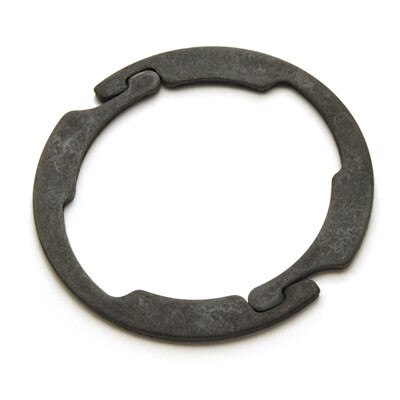

External interlocking snap ring. The LC ring is produced in two identical halves. The ends interlock into a groove on a shaft and are dynamically balanced once assembled. As a result, they are particularly effective at retaining assemblies with extremely high rotational speeds.
