KR-212SJ

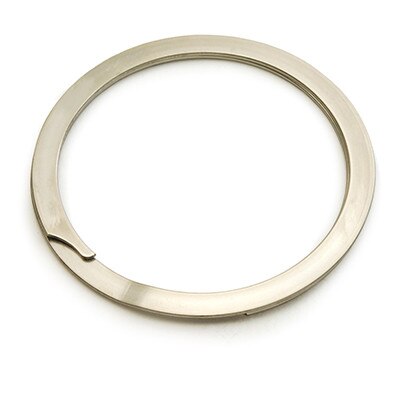

The KR-212SJ is a 2-1/8 inch Internal Medium Heavy Duty Spiral Ring in 302 Stainless Steel with 0.078 thickness. This ring is manufactured by Rotor Clip as their TRUWAVE brand. Made in USA

KR Series Catalog Pages

Details

Part# KR-212SJ

302 Stainless Steel,
Medium Heavy Duty Internal Spiral Ring
Manufactured by Rotor Clip
Made in USA

2.125 In. Housing Diameter
2.255 In. Free Outside Diameter
0.141 In. Section Width
0.078 In. Thick

2.24 In. Groove Diameter
0.086 In. Groove Width
0.058 In. Groove Depth

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
1 - 9	$5.5640
10 - 49	$3.8250
50 - 99	$3.0600
100 - 499	$2.8250
500 +	$2.7000

50 In Stock

(*) Minimun Quantity: 1

More information

Medium heavy duty internal spiral retaining ring carbon steel, plain. Spiral retaining rings are axially installed into housings/bores (internal) or onto shafts (external), making 360° contact with the groove. Spiral retaining rings have no ears or lugs to interfere with the assembly. These rings are manufactured by coiling flat wire into the shape of the finished retaining ring. Spiral rings are provided with a removal notch to simplify the removal process. No special tools are required for installation or removal. Spiral retaining rings can be economically produced in special alloys like stainless steel because the manufacturing process eliminates scrap.
