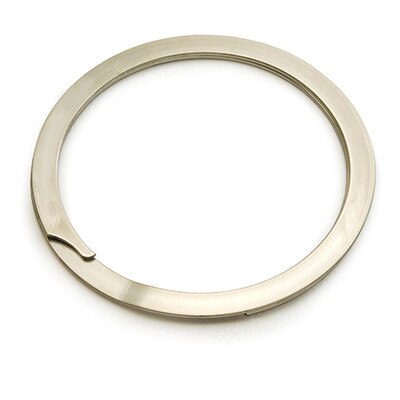

KM-165SJ

The KM-165SJ is a inch Internal Medium Duty Spiral Ring in 302 Stainless Steel with 0.049 thickness. This ring is manufactured by Rotor Clip as their TRUWAVE brand. Made in USA

KM Series Catalog Pages

Details

Part# KM-165SJ

302 Stainless Steel,
Medium Duty Internal Spiral Ring
Manufactured by Rotor Clip
Made in USA

1.653 In. Housing Diameter
1.73 In. Free Outside Diameter
0.108 In. Section Width
0.049 In. Thick

1.712 In. Groove Diameter
0.056 In. Groove Width
0.03 In. Groove Depth

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
1 - 9	$9.6770
10 - 49	$6.6530
50 - 99	$5.3220
100 - 499	$4.9130
500 +	$4.6960

490 In Stock

(*) Minimun Quantity: 1

More information

Medium duty internal spiral retaining ring carbon steel, plain. Spiral retaining rings are axially installed into housings/bores (internal) or onto shafts (external), making 360° contact with the groove. Spiral retaining rings have no ears or lugs to interfere with the assembly. These rings are manufactured by coiling flat wire into the shape of the finished retaining ring. Spiral rings are provided with a removal notch to simplify the removal process. No special tools are required for installation or removal. Spiral retaining rings can be economically produced in special alloys like stainless steel because the manufacturing process eliminates scrap.
