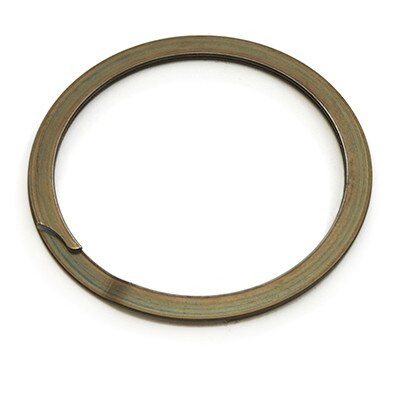

KG-62ST OIL

The KG-62ST OIL is a 5/8 inch Internal Heavy Duty Spiral Ring in Carbon Steel with 0.035 thickness. This ring is manufactured by Rotor Clip as their TRUWAVE brand. Made in USA

KG Series Catalog Pages

Details

Part# KG-62ST OIL

Carbon Steel, Plain, Lightly Oiled
Heavy Duty Internal Spiral Ring
Manufactured by Rotor Clip
Made in USA

0.625 In. Housing Diameter
0.675 In. Free Outside Diameter
0.055 In. Section Width
0.035 In. Thick

0.665 In. Groove Diameter
0.039 In. Groove Width
0.02 In. Groove Depth

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
10 - 49	$0.3500
50 - 99	$0.2800
100 - 499	$0.2590
500 +	$0.2480

2043 In Stock

(*) Minimun Quantity: 10

More information

Heavy duty internal spiral retaining ring carbon steel, plain. Spiral retaining rings are axially installed into housings/bores (internal) or onto shafts (external), making 360° contact with the groove. Spiral retaining rings have no ears or lugs to interfere with the assembly. These rings are manufactured by coiling flat wire into the shape of the finished retaining ring. Spiral rings are provided with a removal notch to simplify the removal process. No special tools are required for installation or removal. Spiral retaining rings can be economically produced in special alloys like stainless steel because the manufacturing process eliminates scrap.
