JE-12ST ZD

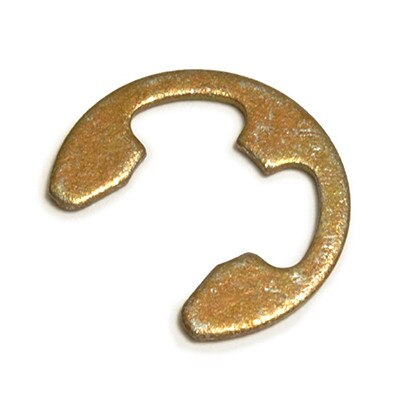

The JE-12ST ZD metric E-Style retaining ring is crafted from Carbon Steel with Zinc Dichromate Yellow finish. It has a 12 mm groove diameter application and a 1 mm thickness with a distinct E Shape designed to meet the JIS Standard. Made in USA

JE Series Catalog pages

Rotor Clip Interchange Chart

Details

Part# JE-12ST ZD

Carbon Spring Steel SAE 1060-1090, Zinc Dichromate Yellow
JE Style Snap Ring to JIS B 2805
Manufactured by Rotor Clip
Made in USA

12 mm Nominal Size
23 mm Free Outside Diameter
1 mm Thick

12 mm Groove Diameter
1.15 mm Groove width

Quantity discounts available

Quantity	Price
50 - 99	$1.0570
100 - 499	$0.5290
500 - 999	$0.4230
1000 - 4999	$0.3850
5000 - 9999	$0.3530
10000 +	$0.3260

1028 In Stock

(*) Minimun Quantity: 50

More information

Perhaps the most popular and widely used radial retaining ring is the E (so named because it is shaped like the letter E.) three prongs make contact with the bottom of the groove and provide a shoulder for effective retention of assemblies.
