Part# JE-12ST PA
Carbon Spring Steel SAE 1060-1090, Phosphate & Oil
JE Style Snap Ring to JIS B 2805
Manufactured by Rotor Clip
12 mm Nominal Size
23 mm Free Outside Diameter
1 mm Thick
12 mm Groove Diameter
1.15 mm Groove width
Carbon Spring Steel SAE 1060-1090, Phosphate & Oil
JE Style Snap Ring to JIS B 2805
Manufactured by Rotor Clip
12 mm Nominal Size
23 mm Free Outside Diameter
1 mm Thick
12 mm Groove Diameter
1.15 mm Groove width

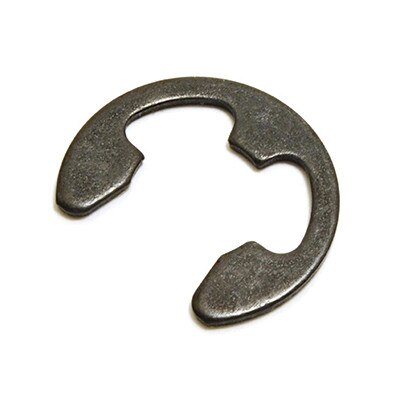

Perhaps the most popular and widely used radial retaining ring is the E (so named because it is shaped like the letter E.) three prongs make contact with the bottom of the groove and provide a shoulder for effective retention of assemblies.
