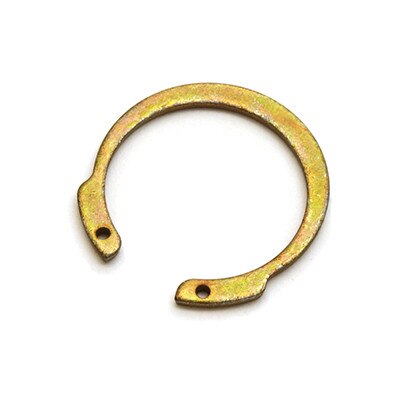

The HOI-400ST ZD is an inverted internal retaining ring for a 4 inch diameter application with a thickness of 0.109 inches, crafted from Carbon Steel with a Zinc Dichromate Yellow finish. This retaining ring is manufactured by Rotor Clip. Made in USA

Details

HOI-400ST ZD - Inverted Internal Retaining Ring - 4 in. Housing, Carbon Steel, Zinc Dichromate

Attribute	Value
Manufacturer	Rotor Clip Company, Inc
Series	HOI
Design	Per Manufacturer Engineering Standards
Inch/Metric	Inch
Type	Internal
Housing Diameter	4 in.
Material	Carbon Steel
Finish	Zinc Dichromate Yellow
Outside Diameter	4.35 in.
Ring Thickness	0.109 in.
Groove Diameter	4.24 in.
Groove Width	0.12 in.
Groove Depth	0.12 in.
Compliance	RoHS: No ✔ REACH Prop65: Hexavalent Chromium

Quantity discounts available

Quantity	Price
10 - 49	$15.8530
50 - 99	$12.6830
100 - 499	$11.7070
500 +	$11.1910

0 In Stock

(*) Minimun Quantity: 10

More information

Inverted internal retaining ring in stainless steel. Inverted retaining rings are a variation of axially assembled rings in which the lug holes are inverted to fit in the bottom of the groove. Inverting the lugs allows greater clearance on a shaft or in a housing and forms a higher uniform shoulder good for retaining bearings and other components with large corner radii or chamfers.
