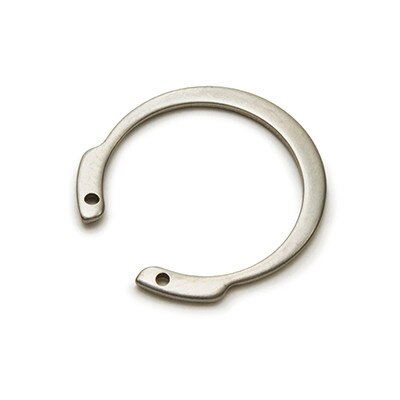

  • HOI-400SS, 4 in. Internal Inverted Ring .109 In. Thick Stainless Steel, Passivated

The HOI-400SS is an inverted internal retaining ring for a 4 inch diameter application with a thickness of 0.109 inches, crafted from Stainless Steel PH15-7Mo with a Passivated finish. This retaining ring is manufactured by Rotor Clip. Made in USA

Details

Details

Part# HOI-400SS

Stainless Steel, Passivated
Manufactured by Rotor Clip
Made in USA

4 In. Housing Diameter, Inverted Internal Ring
4.35 In. Free Outside Diameter
0.109 In. Thick
0.125 In. Hole Diameter

4.24 In. Groove Diameter
0.12 In. Groove Width
0.12 In. Groove Depth

✅ RoHS Compliant ✅ REACH Compliant
QuantityPrice
1 - 9$74.9790
10 - 49$51.5490
50 - 99$41.2390
100 - 499$38.0670
500 +$36.3870

20 In Stock

(*) Minimun Quantity: 1

More information

Inverted internal retaining ring in stainless steel. Inverted retaining rings are a variation of axially assembled rings in which the lug holes are inverted to fit in the bottom of the groove. Inverting the lugs allows greater clearance on a shaft or in a housing and forms a higher uniform shoulder good for retaining bearings and other components with large corner radii or chamfers.
