HO-62SS

The HO-62SS is the most common internal retaining ring for a 5/8 inch diameter application with a thickness of 0.035 inches, crafted from Stainless Steel PH15-7Mo with a Passivated finish. This retaining ring is manufactured by Rotor Clip. Made in USA

Details

Part# HO-62SS

Stainless Steel, Passivated
Manufactured by Rotor Clip
Made in USA

0.625 In. Housing Diameter, Basic Internal Ring
0.694 In. Free Outside Diameter
0.035 In. Thick
0.062 In. Hole Diameter

0.665 In. Groove Diameter
0.039 In. Groove Width
0.02 In. Groove Depth

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
25 - 99	$2.0130
100 - 499	$1.0070
500 - 999	$0.8060
1000 - 4999	$0.7320
5000 - 9999	$0.6710
10000 +	$0.6200

6730 In Stock

(*) Minimun Quantity: 25

More information

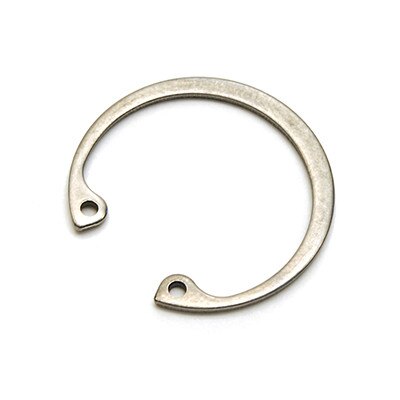

Basic internal retaining ring in stainless steel, passivated. Tapered section retaining rings decrease symmetrically from the center to the free ends, remaining circular when contracted or expanded within the limits of normal use. This assures contact with the groove along the entire periphery of the ring. These rings may be installed axially (horizontally along the center point of an axis) or radially (externally along the radius of a circle). Axially assembled retaining rings are installed into machined grooves in housings/bores (internal) or on shafts (external). These rings are manufactured with lug holes—small holes in the lugs of both axial internal and external retaining rings—that are used to install/remove them, using pliers designed for this purpose.
