HO-354SS

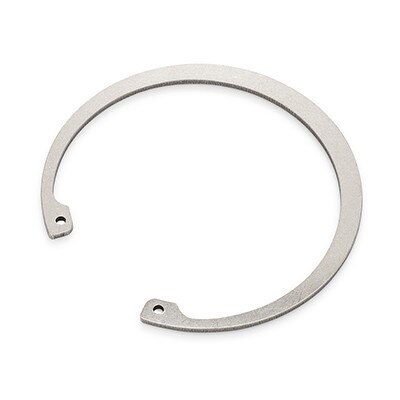

The HO-354SS is the most common internal retaining ring for a 3.543 inch diameter application with a thickness of 0.109 inches, crafted from Stainless Steel PH15-7Mo with a Passivated finish. This retaining ring is manufactured by Rotor Clip. Made in USA

Details

Part# HO-354SS

Stainless Steel, Passivated
Manufactured by Rotor Clip
Made in USA

3.543 In. Housing Diameter, Basic Internal Ring
3.936 In. Free Outside Diameter
0.109 In. Thick
0.125 In. Hole Diameter

3.755 In. Groove Diameter
0.12 In. Groove Width
0.106 In. Groove Depth

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
5 - 9	$68.9800
10 - 49	$47.4240
50 - 99	$37.9390
100 - 499	$35.0210
500 +	$33.4760

0 In Stock

(*) Minimun Quantity: 5

More information

Basic internal retaining ring in stainless steel, passivated. Tapered section retaining rings decrease symmetrically from the center to the free ends, remaining circular when contracted or expanded within the limits of normal use. This assures contact with the groove along the entire periphery of the ring. These rings may be installed axially (horizontally along the center point of an axis) or radially (externally along the radius of a circle). Axially assembled retaining rings are installed into machined grooves in housings/bores (internal) or on shafts (external). These rings are manufactured with lug holes—small holes in the lugs of both axial internal and external retaining rings—that are used to install/remove them, using pliers designed for this purpose.
