HO-25BC

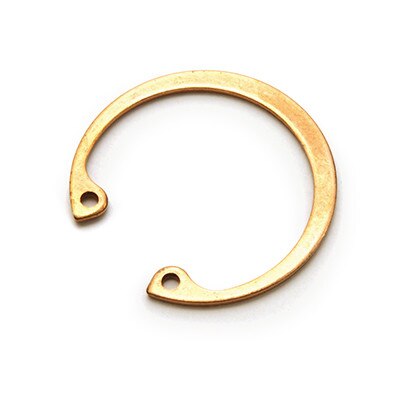

The HO-25BC is the most common internal retaining ring for a 1/4 inch diameter application with a thickness of 0.015 inches, crafted from Beryllium Copper with a Plain finish. This retaining ring is manufactured by Rotor Clip. Made in USA

Details

Part# HO-25BC

Beryllium Copper, Plain
Manufactured by Rotor Clip
Made in USA

0.25 In. Housing Diameter, Basic Internal Ring
0.28 In. Free Outside Diameter
0.015 In. Thick
0.031 In. Hole Diameter

0.268 In. Groove Diameter
0.02 In. Groove Width
0.009 In. Groove Depth

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
25 - 99	$1.3570
100 - 499	$0.6790
500 - 999	$0.5430
1000 - 4999	$0.4940
5000 - 9999	$0.4530
10000 +	$0.4180

2690 In Stock

(*) Minimun Quantity: 25

More information

Basic internal retaining ring in beryllium copper. Tapered section retaining rings decrease symmetrically from the center to the free ends, remaining circular when contracted or expanded within the limits of normal use. This assures contact with the groove along the entire periphery of the ring. These rings may be installed axially (horizontally along the center point of an axis) or radially (externally along the radius of a circle). Axially assembled retaining rings are installed into machined grooves in housings/bores (internal) or on shafts (external). These rings are manufactured with lug holes—small holes in the lugs of both axial internal and external retaining rings—that are used to install/remove them, using pliers designed for this purpose.
