HO-150ST Z3X

The HO-150ST Z3X is the most common internal retaining ring for a 1-1/2 inch diameter application with a thickness of 0.05 inches, crafted from Carbon Steel with a Zinc Clear Trivalent Chromate finish. This retaining ring is manufactured by Rotor Clip. Made in USA

HO Series Catalog Pages

Rotor Clip Interchange Chart

Details

Part# HO-150ST Z3X

Carbon Steel, Zinc Trivalent Clear
Manufactured by Rotor Clip
Made in USA

1.5 In. Housing Diameter, Basic Internal Ring
1.66 In. Free Outside Diameter
0.05 In. Thick
0.078 In. Hole Diameter

1.594 In. Groove Diameter
0.056 In. Groove Width
0.047 In. Groove Depth

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
25 - 99	$1.6390
100 - 499	$0.8200
500 - 999	$0.6560
1000 - 4999	$0.5960
5000 - 9999	$0.5470
10000 +	$0.5050

1500 In Stock

(*) Minimun Quantity: 25

More information

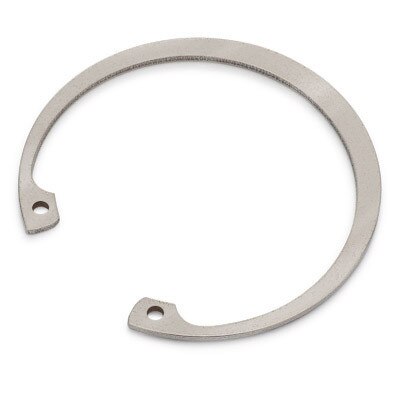

Basic internal retaining ring in carbon steel, Zinc Trivalent plated. Tapered section retaining rings decrease symmetrically from the center to the free ends, remaining circular when contracted or expanded within the limits of normal use. This assures contact with the groove along the entire periphery of the ring. These rings may be installed axially (horizontally along the center point of an axis) or radially (externally along the radius of a circle). Axially assembled retaining rings are installed into machined grooves in housings/bores (internal) or on shafts (external). These rings are manufactured with lug holes—small holes in the lugs of both axial internal and external retaining rings—that are used to install/remove them, using pliers designed for this purpose.
