HO-100ST ZD

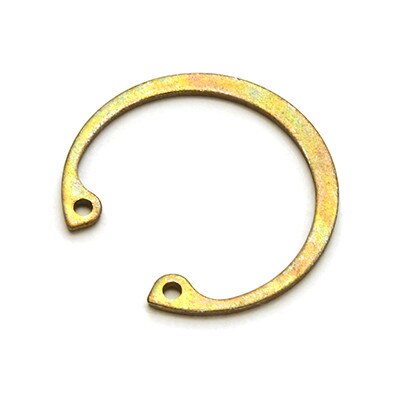

The HO-100ST ZD is the most common internal retaining ring for a 1 inch diameter application with a thickness of 0.042 inches, crafted from Carbon Steel with a Zinc Dichromate Yellow finish. This retaining ring is manufactured by Rotor Clip. Made in USA

Details

Part# HO-100ST ZD

Carbon Steel, Zinc Dichromate Yellow
Manufactured by Rotor Clip
Made in USA

1 In. Housing Diameter, Basic Internal Ring
1.111 In. Free Outside Diameter
0.042 In. Thick
0.062 In. Hole Diameter

1.066 In. Groove Diameter
0.046 In. Groove Width
0.033 In. Groove Depth

⚠WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds) which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Quantity discounts available

Quantity	Price
50 - 99	$0.6570
100 - 499	$0.3290
500 - 999	$0.2630
1000 - 4999	$0.2390
5000 - 9999	$0.2190
10000 +	$0.2030

16200 In Stock

(*) Minimun Quantity: 50

More information

Basic internal retaining ring in carbon steel, zinc yellow plated. Tapered section retaining rings decrease symmetrically from the center to the free ends, remaining circular when contracted or expanded within the limits of normal use. This assures contact with the groove along the entire periphery of the ring. These rings may be installed axially (horizontally along the center point of an axis) or radially (externally along the radius of a circle). Axially assembled retaining rings are installed into machined grooves in housings/bores (internal) or on shafts (external). These rings are manufactured with lug holes—small holes in the lugs of both axial internal and external retaining rings—that are used to install/remove them, using pliers designed for this purpose.
