E-43BC

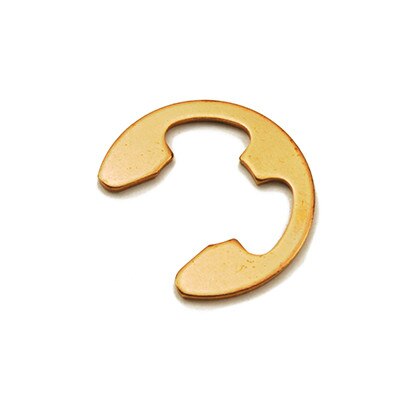

The E-43BC is an E-Style retaining ring crafted from Beryllium Copper with finish. It has a 7/16 inch shaft diameter application and is 0.035 inches thick with a distinct E Shape. Made in USA

Details

Part# E-43BC

Beryllium Copper,
Manufactured by Rotor Clip
Made in USA

0.438 In. Shaft Diameter, E-Style External Ring
0.687 In. Free Outside Diameter
0.337 In. Free Inside Diameter
0.035 In. Thick

0.343 In. Groove Diameter
0.039 In. Groove Width
0.047 In. Groove Depth

✅ RoHS Compliant ✅ REACH Compliant

Quantity discounts available

Quantity	Price
2500 - 4999	$1.7000
5000 - 9999	$1.5580
10000 +	$1.4380

0 In Stock

(*) Minimun Quantity: 2500

More information

The externally used radial retaining ring that enjoys widespread popularity is the "E"-style ring. Characterised by its E-like shape, this ring has three prongs that fit securely into the groove's base, thereby creating a sturdy retaining shoulder.
