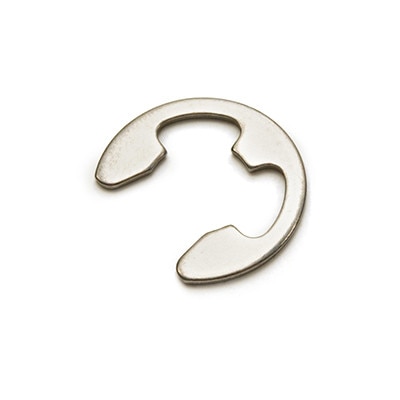

The E-25SS is an E-Style retaining ring crafted from Stainless Steel PH15-7Mo with Passivated finish. It has a 1/4 inch shaft diameter application and is 0.025 inches thick with a distinct E Shape. Made in USA

Details

E-25SS - External E-Style Retaining Ring - 1/4 in. Shaft, Stainless Steel: PH15-7Mo, Passivated

Attribute	Value
Manufacturer	Rotor Clip Company, Inc
Series	E
Design	Per Manufacturer Engineering Standards
Inch/Metric	Inch
Type	External
Shaft Diameter	1/4 in. (0.25)
Material	Stainless Steel: PH15-7Mo
Finish	Passivated
Outside Diameter	0.527 in.
Ring Thickness	0.025 in.
Groove Diameter	0.21 in.
Groove Width	0.029 in.
Groove Depth	0.02 in.
Compliance	✔ RoHS ✔ REACH ✔ Prop65

Quantity discounts available

Quantity	Price
100 - 499	$0.2790
500 - 999	$0.2230
1000 - 4999	$0.2030
5000 - 9999	$0.1860
10000 +	$0.1720

121960 In Stock

(*) Minimun Quantity: 100

More information

The externally used radial retaining ring that enjoys widespread popularity is the "E"-style ring. Characterised by its E-like shape, this ring has three prongs that fit securely into the groove's base, thereby creating a sturdy retaining shoulder.
